Passive House Window System

A corner section of a passive house window showing internal structure and insulation
Renolit Color Scheme options

Description

A Passive House is the gold standard of energy-efficient construction, consuming up to 90% less heating energy than existing conventional buildings and 75% less than typical new builds. At H.O. Schlüter, our passive house window systems are engineered to make this possible, meeting the strict requirements of both PHIUS and PHI certification. With U-values as low as 0.12 Btu/hr·sq ft·°F, we provide some of the most efficient windows available on the market today. The system’s exceptional performance is achieved through reinforcement chambers in the sash and frame, filled with ProEnergyTec® foam — a recyclable material that delivers outstanding thermal insulation while supporting sustainable building practices. These windows easily meet Passive House standards, ensuring annual heating requirements of just 4,755 Btu/sq ft of living space. Compatible with both the H.O. Schlüter Classic and AluClip Systems, this solution combines modern design with large glass surfaces that not only maximize natural light but also increase solar heat gains for improved efficiency.

Features



  • Thermal insulation U-value on this window is 0.14 Btu/hr-sq ft-°F

  • Steel-reinforced chambers for effective protection against unwanted intruders.

  • Excellent sound reduction properties.

  • Easy care and maintenance thanks to robust and weather-resistant surfaces.

  • Made from high-quality uPVC - Will not rot, corrode, fade, discolor or deform when exposed to moisture or damp conditions.

  • Available in Parallel or Tilt Turn opening for maximum ventilation and security.

Color Options & Finishes

For maximum thermal efficiency, our standard passive house window comes in standard white.  Color options are available, contact us for more details.

Specification

Min. U-Value (1230 x 1480 mm window)

Fire Resistance (ASTM E84)

Air Leakage Resistance (ASTM E283-04)

Water Penetration Resistance (ASTM E547)

Performance Class (NAFS 08-11)

Performance Grade (NAFS 08-11)

Burglar Resistance (ASTM F588)

Sound Transmission Class (ASTM E413-16)

OITC (ASTM E1332-16)

Volatile Organic Compounds (AgBB)

0.13 Btu/hr-sq ft-°F

Class A

Pass A3

Pass - PG 100

LC, CW, AW

35-70

Grade 20 / 40

43 (maximum)

36 (maximum)

Pass

Renolit color scheme options
Passive House profile diagram of two elements joining

Dimensions

Frame Depth

Minimum Frame Length

Maximum Frame Length

Minimum Glass Thickness

Maximum Glass Thickness

Minimum Sash Width & Height

Maximum Sash Width & Height

Minimum Divider Width

Minimum Sash + Frame Sightline

Sash + Floating Mullion Sightline

76 mm

250 mm

3000 mm

4-18 mm

48-50 mm

450 mm

2500 mm

26 mm

116 mm

166 mm

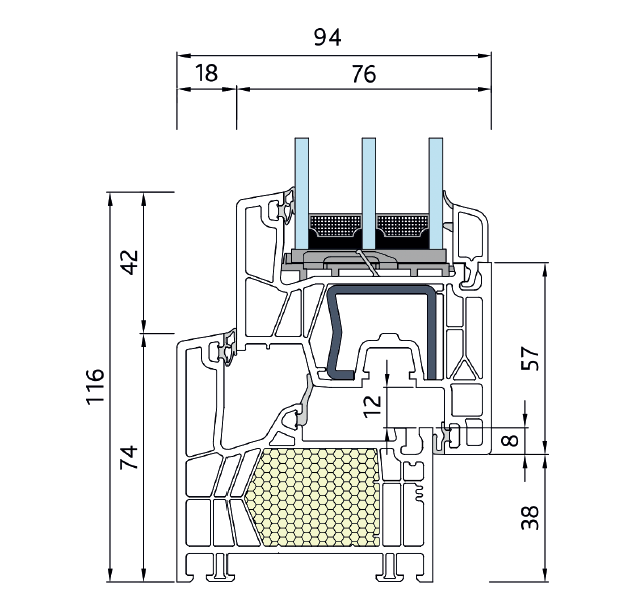

Passive House profile diagram
